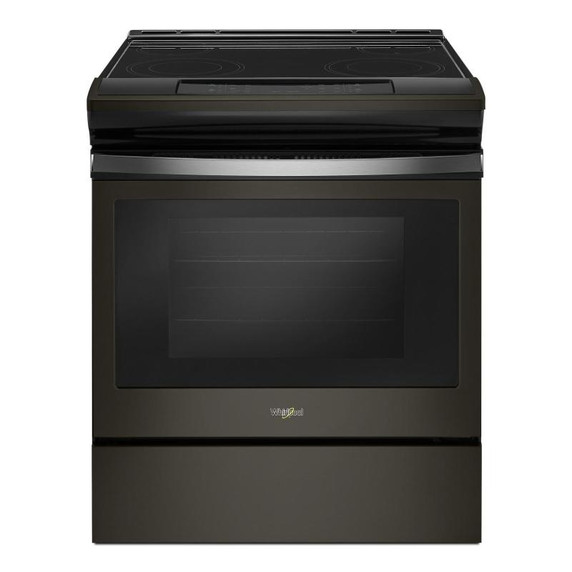

Whirlpool® 4.8 cu. ft. guided Electric Front Control Range with the easy-wipe ceramic glass cooktop YWEE510S0FV
Whirlpool® 4.8 cu. ft. guided Electric Front Control Range with the easy-wipe ceramic glass cooktop YWEE510S0FV
This product has Extended Service Plans available**
Whirlpool
Whirlpool® 4.8 cu. ft. guided Electric Front Control Range with the easy-wipe ceramic glass cooktop YWEE510S0FV
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

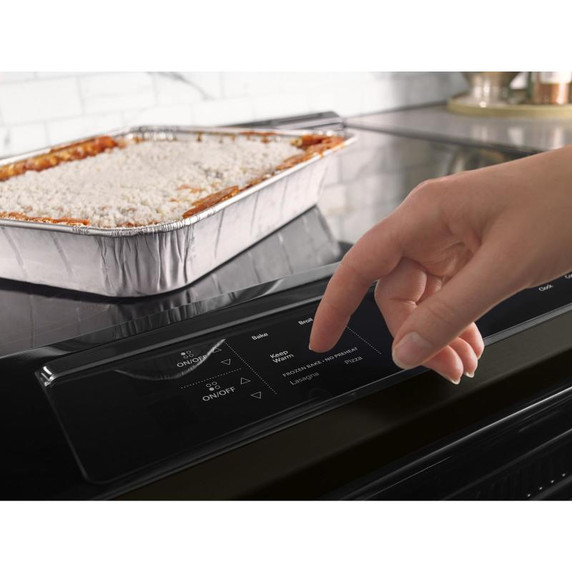

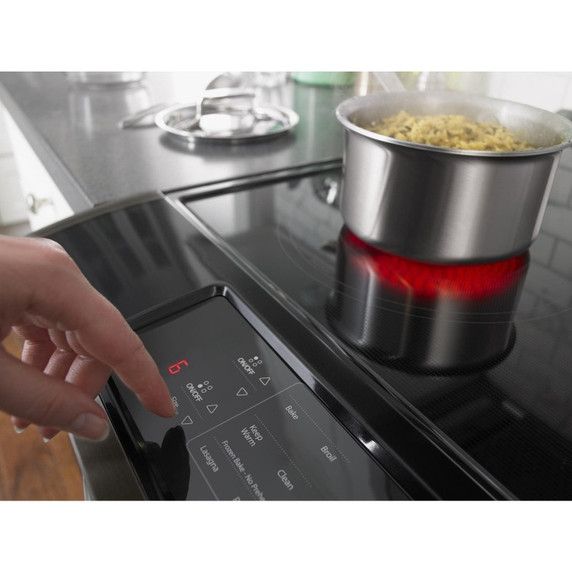

Guided Cooktop ControlsControl the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.
Guided Cooktop ControlsControl the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.

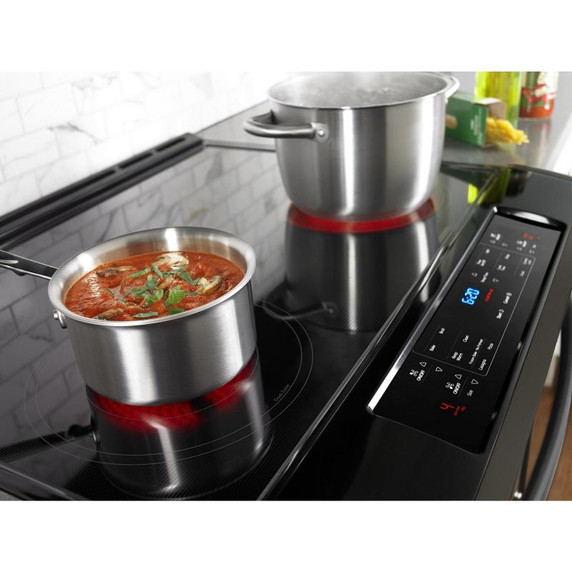

FlexHeat™ Dual Radiant ElementsGet two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.
Adjustable Self-CleaningTake on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.
Adjustable Self-CleaningTake on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Controls
Control TypeElectronic Touch
Electrical
Volts120
Hz60
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeElectric
Energy
Annual Energy Usage Kwh518
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW10115773, W10655448, W10655449, W10655450, W10675026, W10675027, W10731885, W10731886, W11123246
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Certifications
ULYes
CULYes
ADA CompliantYes
Energy Rating Kwh Year518
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Description
Size In30
Range TypeSlide-in
Details
Oven Cleaning TypeSelf-Clean
Oven Control LocationFront Control
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Oven Control TypeElectronic Touch
Convection Element TypeNone
Convection FunctionsNo
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control LocationFront
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Cooktop Surface ColorStainless Steel
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Gross Weight172.0 lbs.
Net Weight152.0 lbs.
Capacity (cubic feet)4.80
Depth Closed Excluding Handles28.13"
Depth With Door Open 90 Degree47.38"
Depth28.94"
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)4.8
