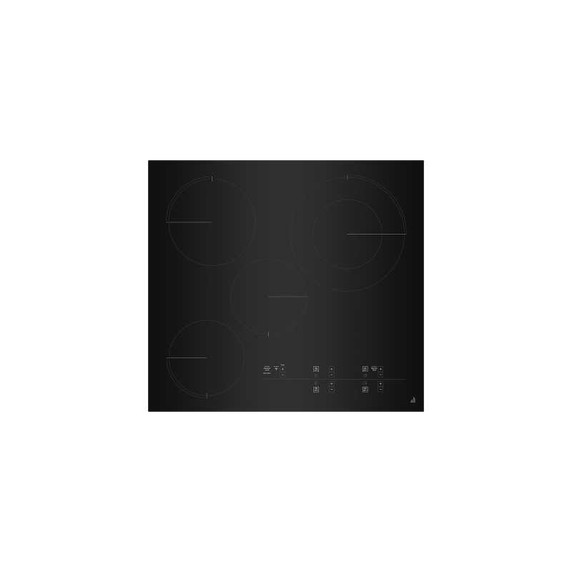

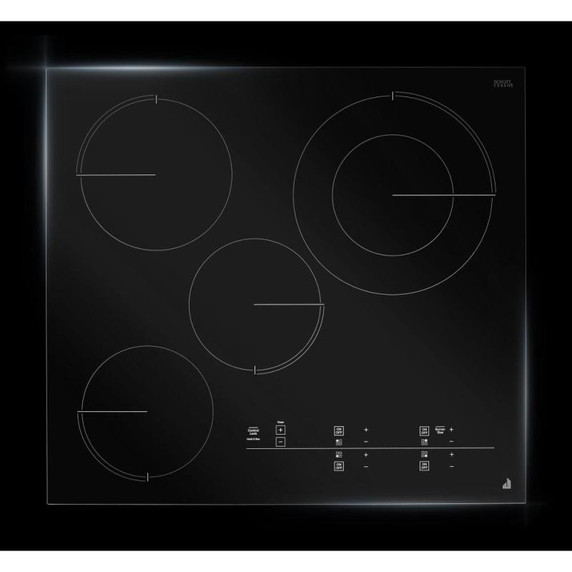

Jennair® Oblivion 24" Electric Radiant Cooktop with Emotive Controls JEC4424KB
Most Powerful Radiant Cooktop In Its ClassThe five-element, 12,900-watt 36" JEC4536H is the most powerful radiant cooktop in its class

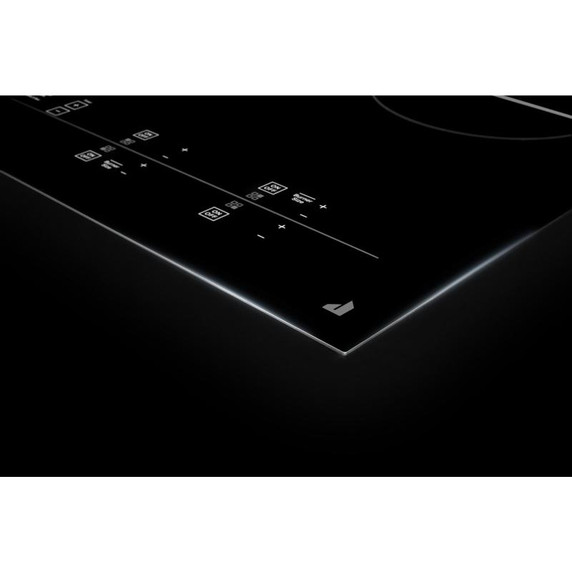

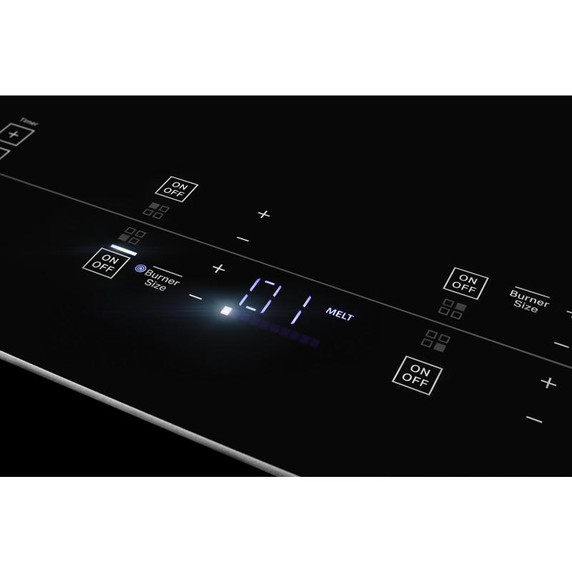

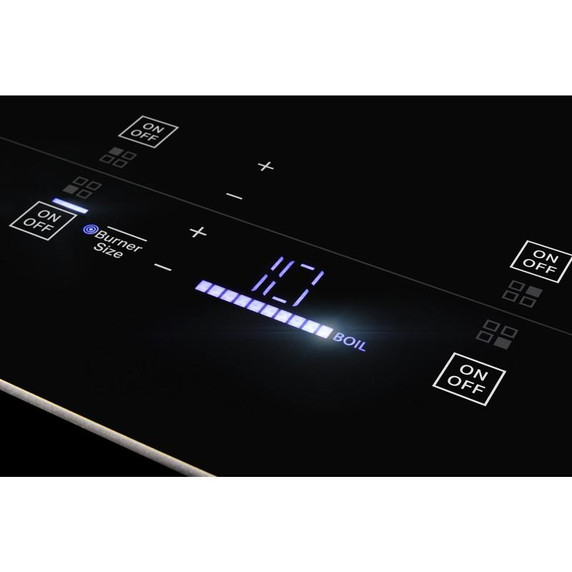

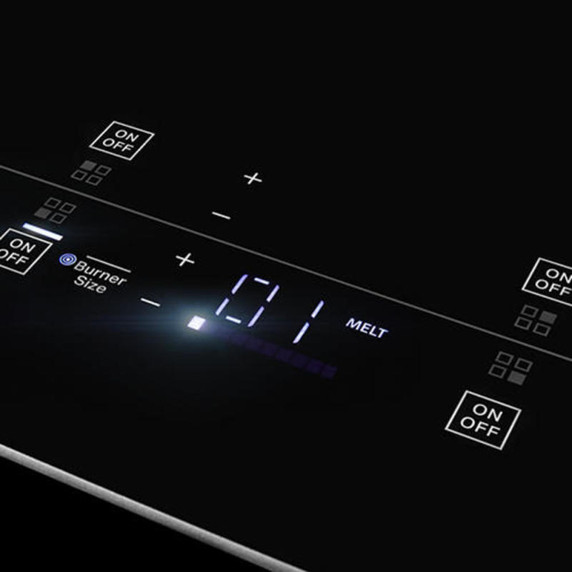

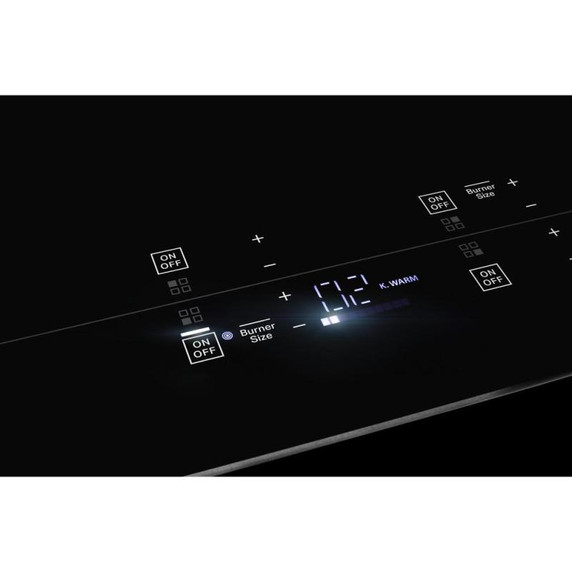

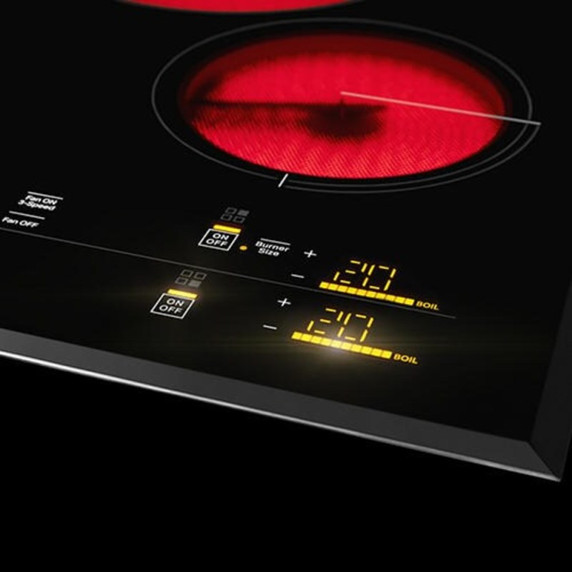

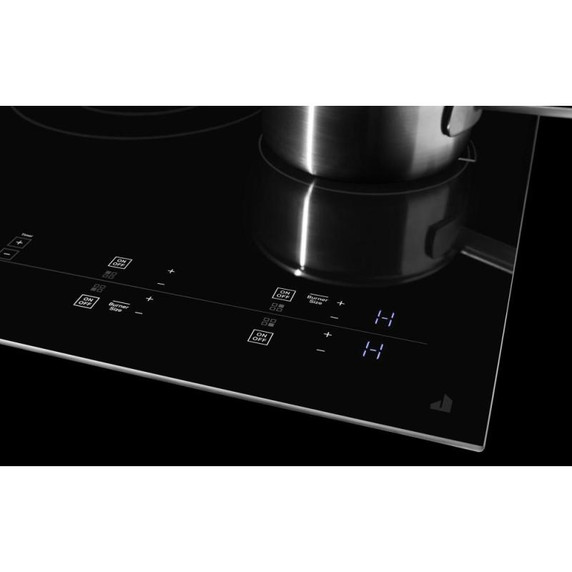

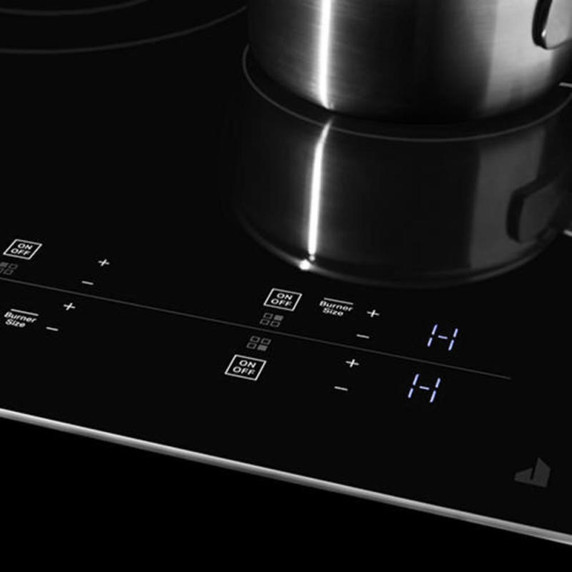

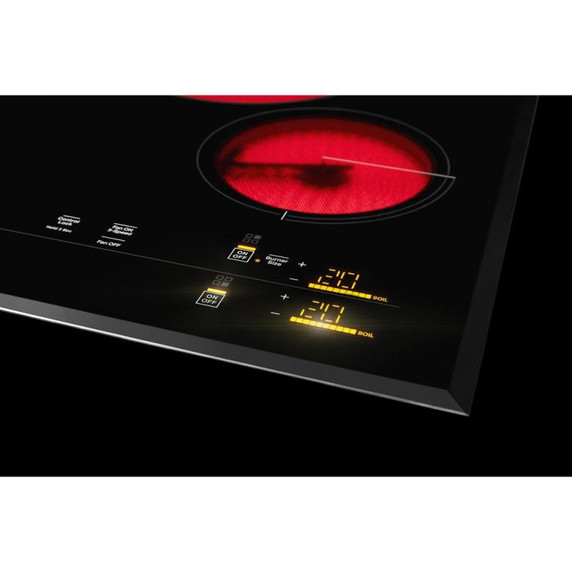

Emotive ControlsHold sway over every zone. Let your light-guided touch coax out the flavors of beverages, spirits and beyond.

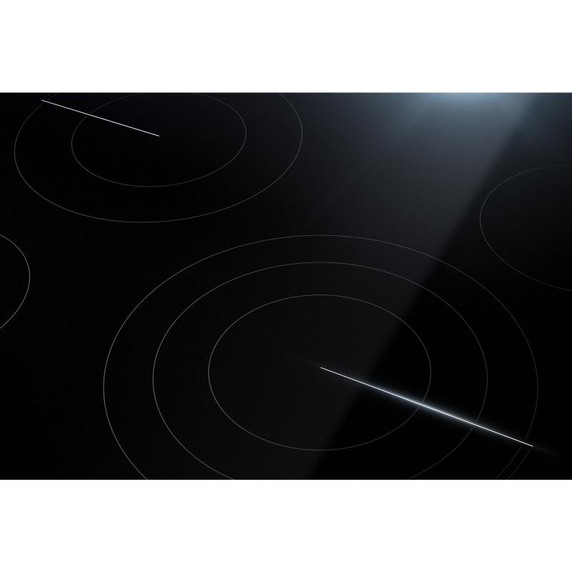

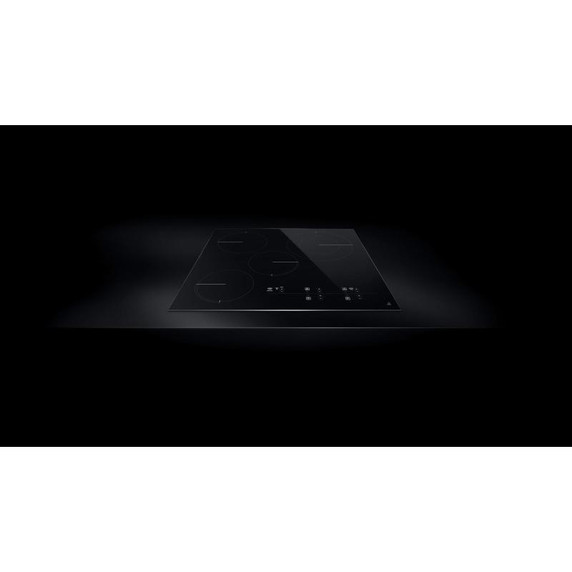

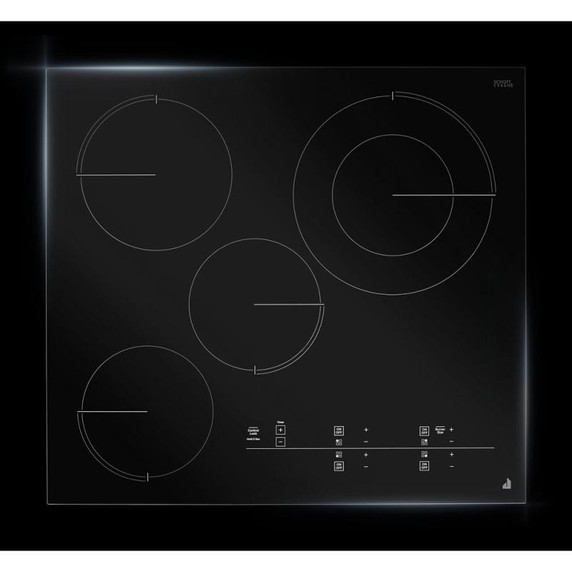

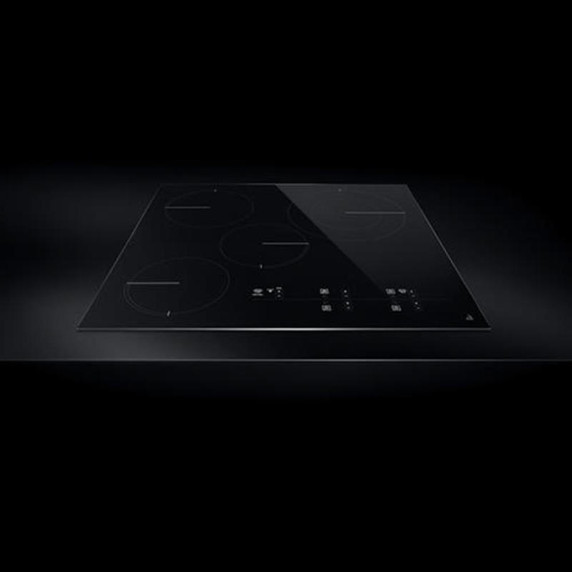

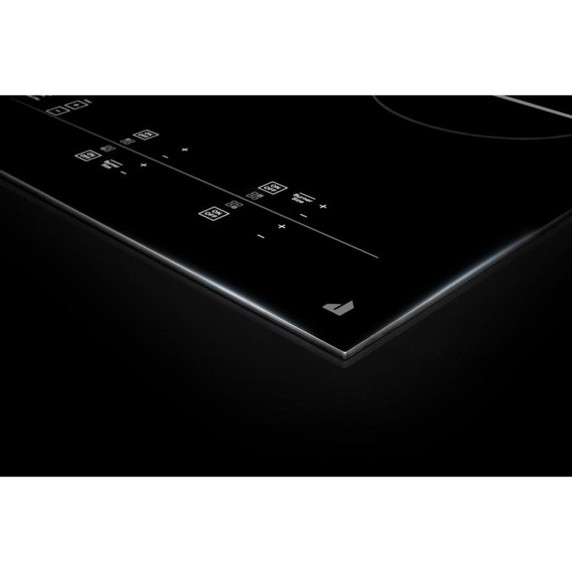

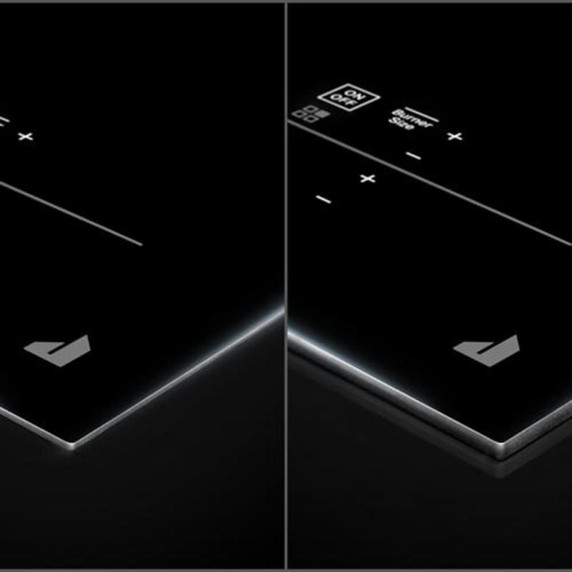

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

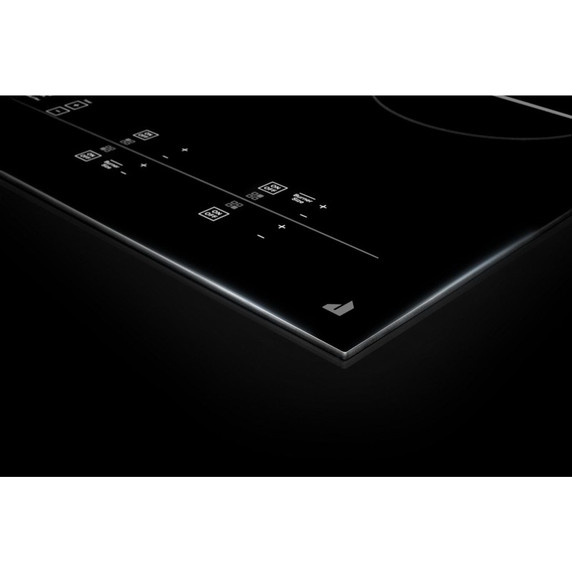

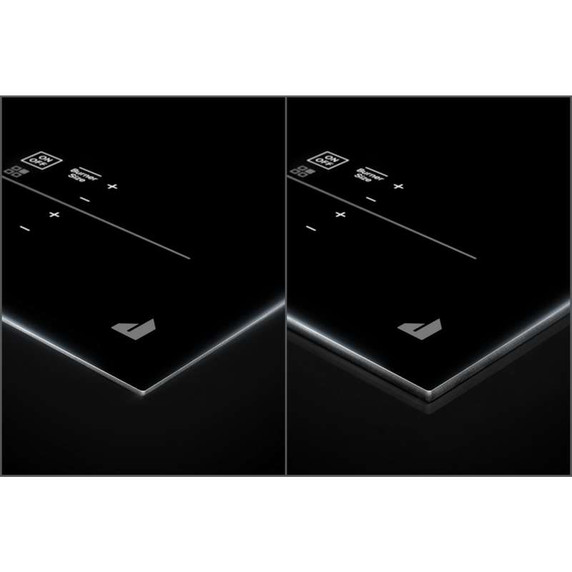

Versatile InstallationInstall without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.

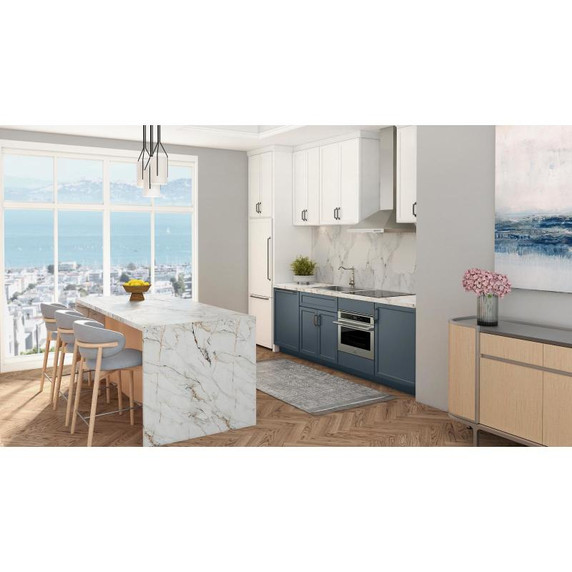

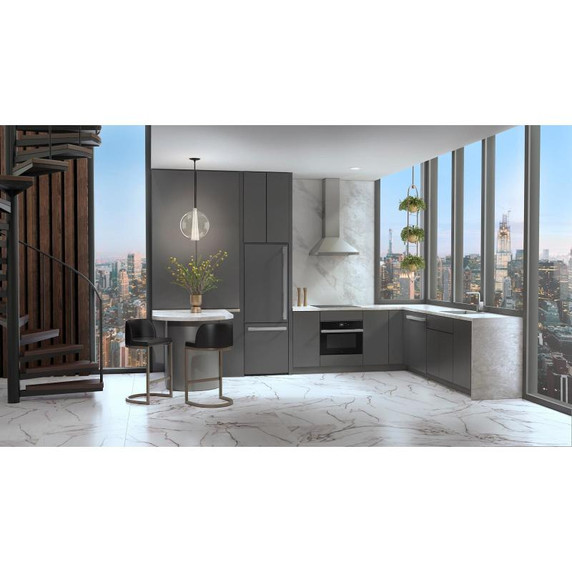

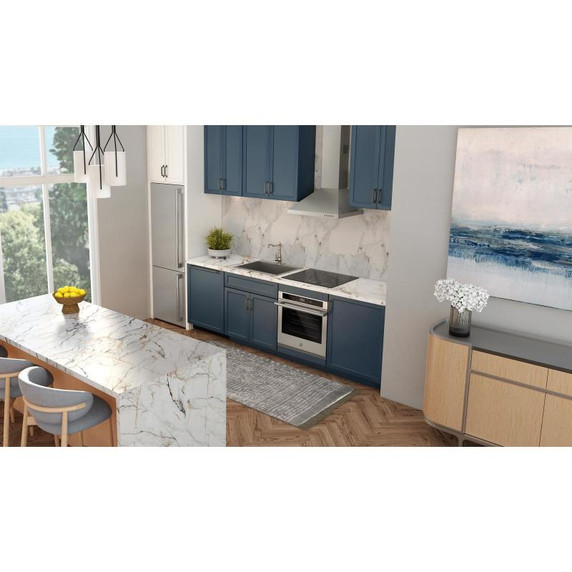

Install Over Single Wall OvenVersatility and functionality converge with the ability to install in a countertop above our single wall oven.

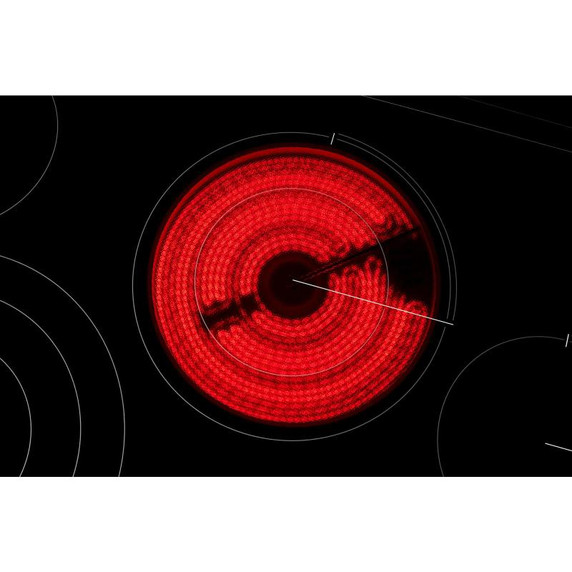

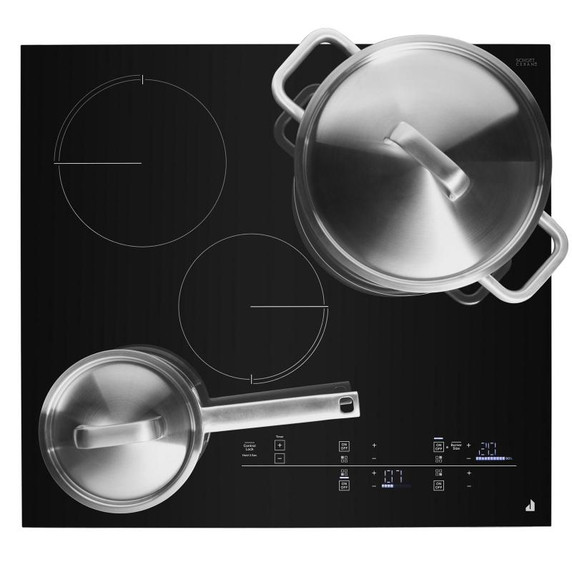

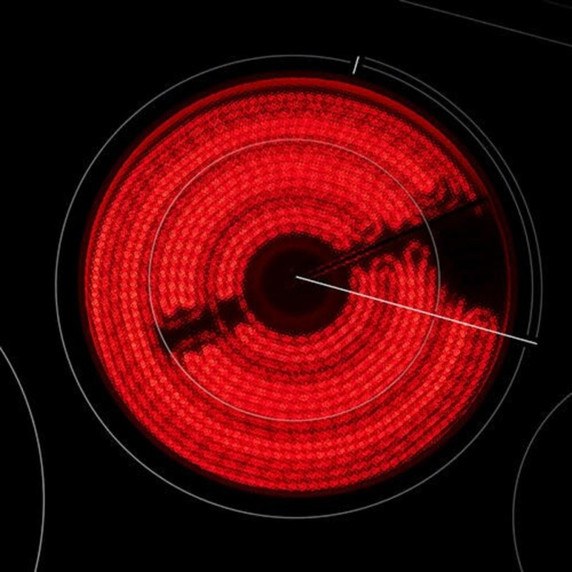

10”/6” Dual-Choice™ ElementThis two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

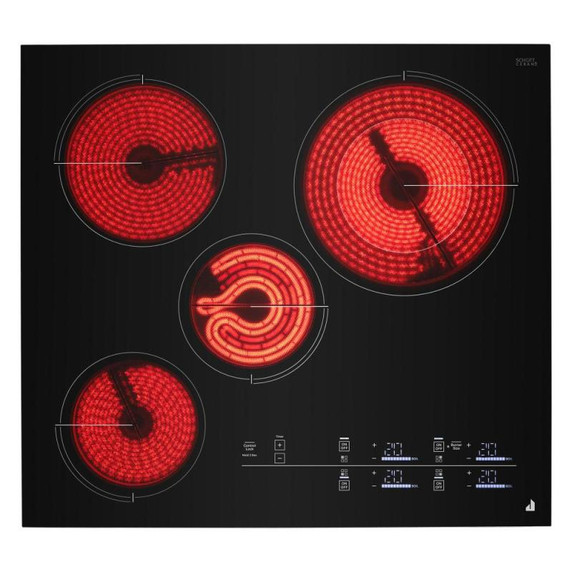

Radiant ElementsWaiting expectantly beneath the stillness of shadow-black glass, electric elements are coiled to deliver heat upon command.
8” 1,800-Watt ElementThis 1,800 watt element is perfectly sized for medium-sized cookware and offers the power to perform a wide variety of cooking tasks.
6” 1,300-Watt Single ElementA fast-heating, perfectly sized and powerful 1,300-watt element for your small sauce pans and larger sauciers.
6” 1,200-Watt Single ElementA fast-heating and perfectly sized element for your small sauce pans and larger sauciers.

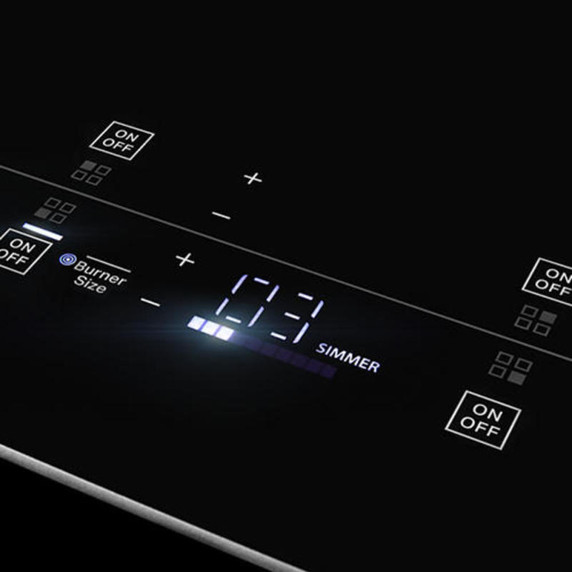

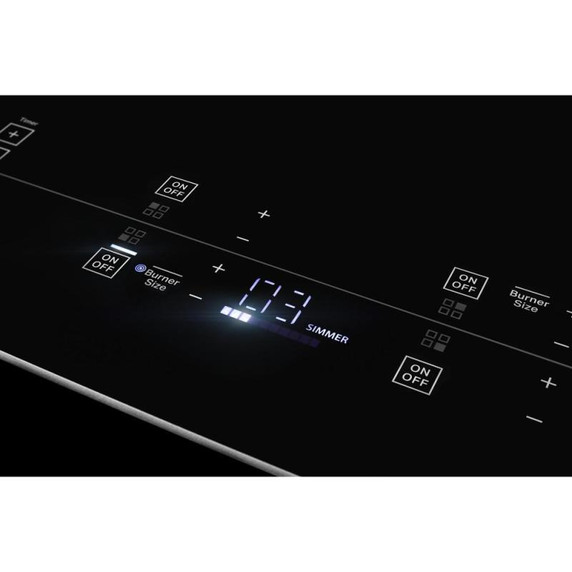

Simmer Function on All ElementsProvides the optimal temperature for gently cooking delicate sauces and foods.

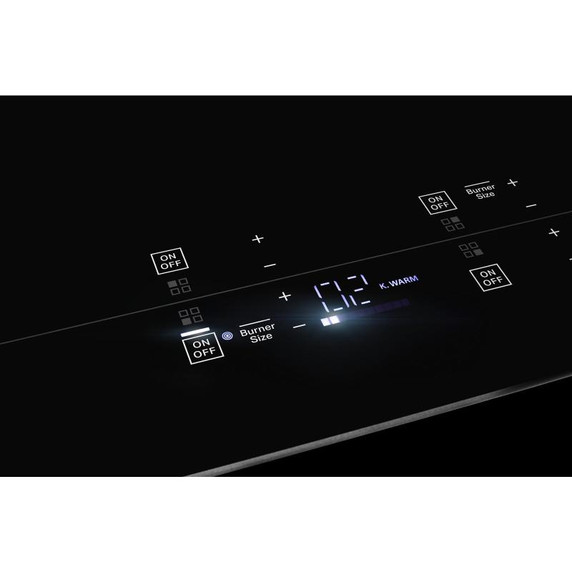

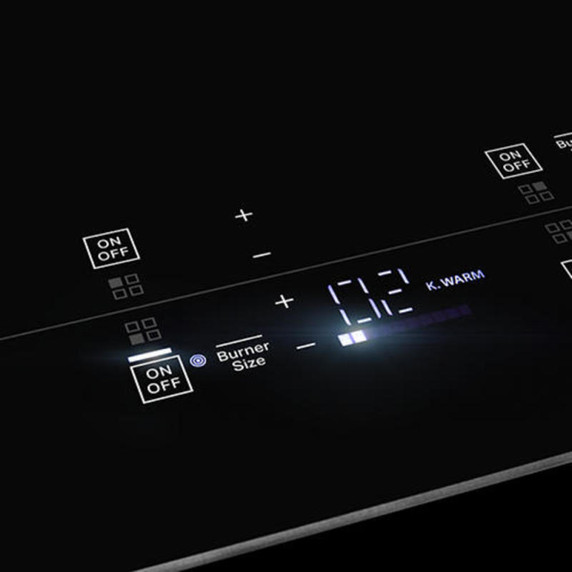

Keep Warm™ Function on All ElementsReward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
Hot Surface IndicatorsLight(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the controls.
Power On Indicator LightSee at a glance that power is on for an electric induction element.
Control LockPrevents accidental temperature changes and makes it easy to clean the controls.
Cooktop Power Off FunctionConveniently turn off all radiant elements at once.
ADA CompliantDesigned to meet ADA standards when installed according to the ADA guidelines.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW07IW4Y, EW07IW1Y, EW07IW2Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Controls
Control TypeElectronic
Control LocationFront
Cooktop Details
Right Rear Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Left Front Element Burner Size6in.
Right Front Element Burner Power1300W
Right Rear Element Burner Power3000W/1900W
Right Rear Element Burner Size10in./6in.
Left Front Element Burner Power1200W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Digital DisplayYes
Configuration and Overview
Fuel TypeElectric
Description
Size In24
Cooktop TypeTraditional
Design Type
Design ExpressionOblivian Glass
Depth21.75"
Height5.25"
Maximum Height5.25"
Net Weight42.29 lbs.
Width23.81"

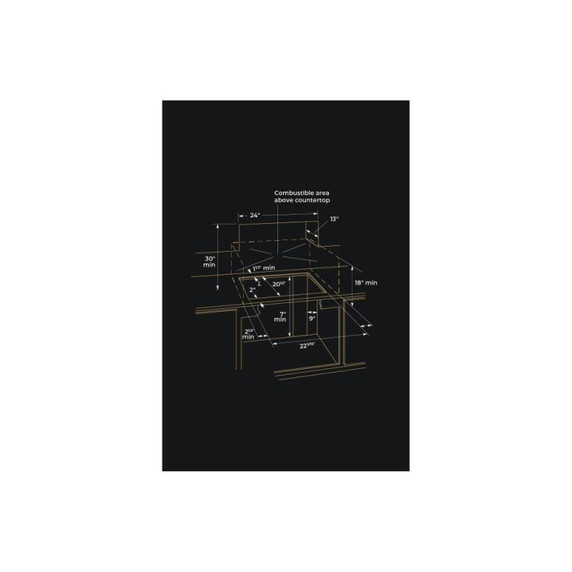

Cutout Depth20.38"
Cutout Width22.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch27.75
