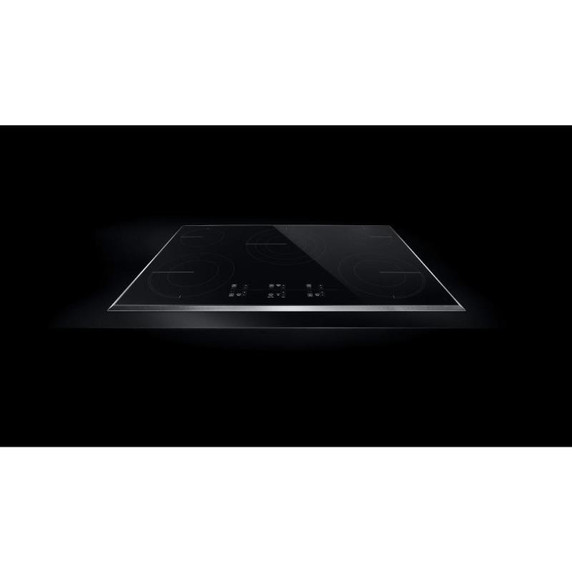

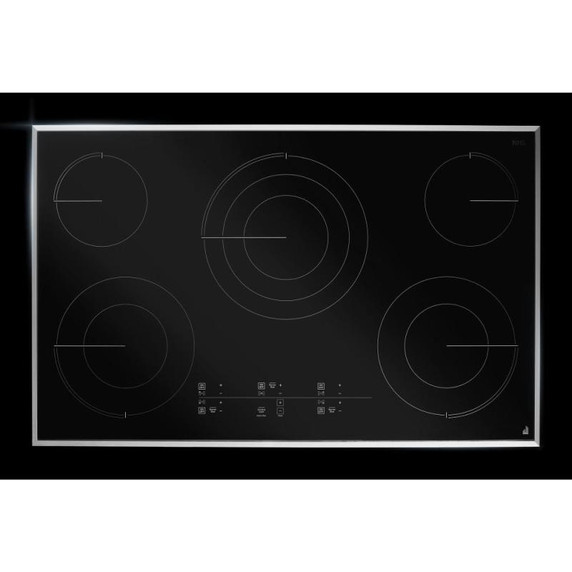

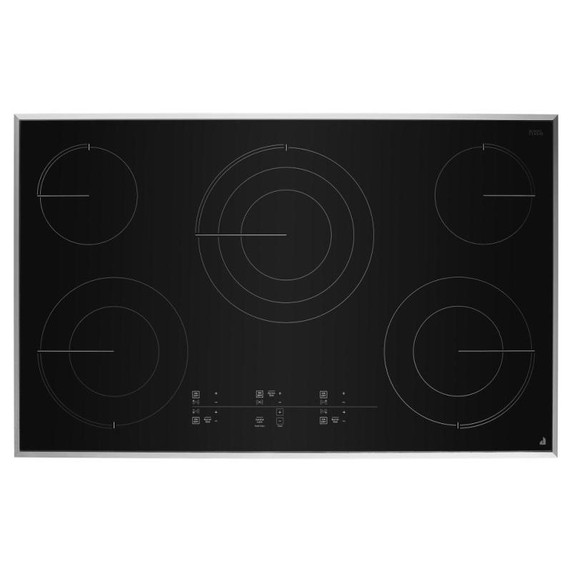

Jennair® Lustre 36" Electric Radiant Cooktop with Emotive Controls JEC4536KS
JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!
Most Powerful Radiant Cooktop In Its ClassThe five-element, 12,900-watt 36" JEC4536H is the most powerful radiant cooktop in its class

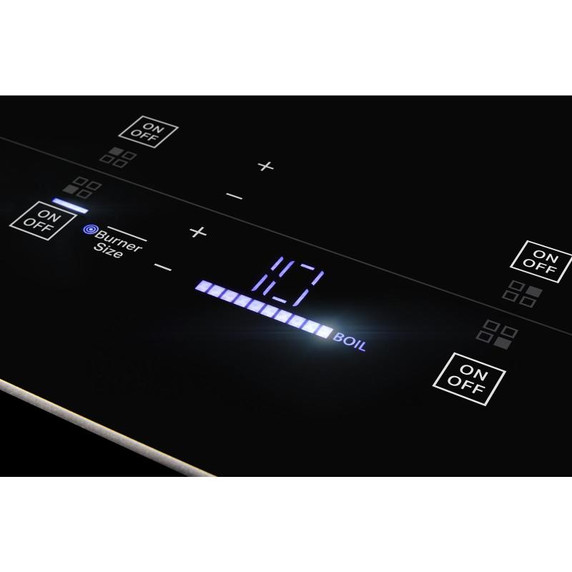

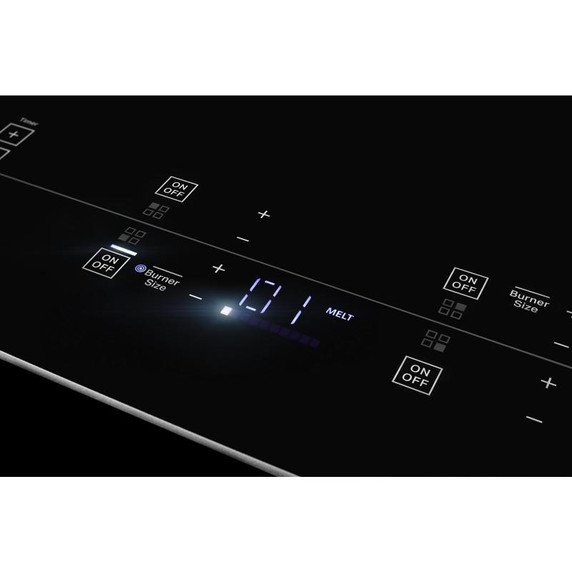

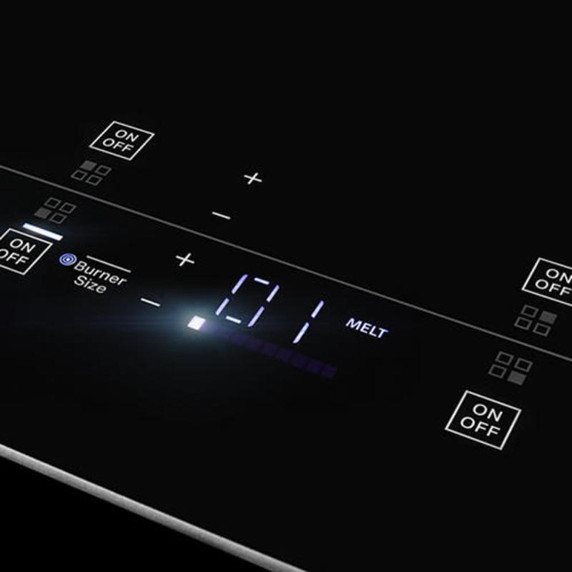

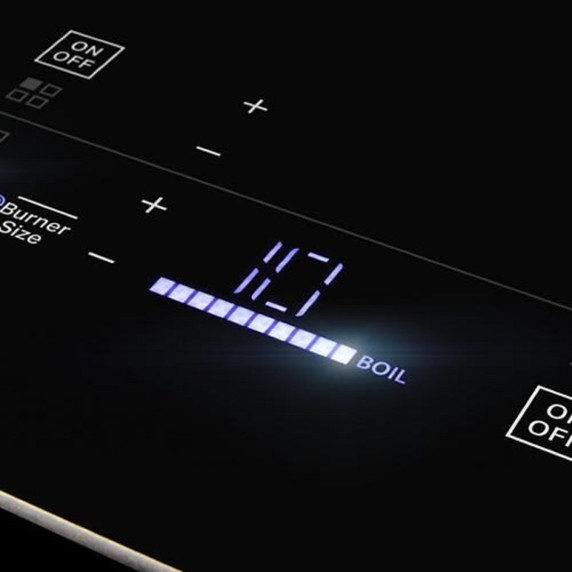

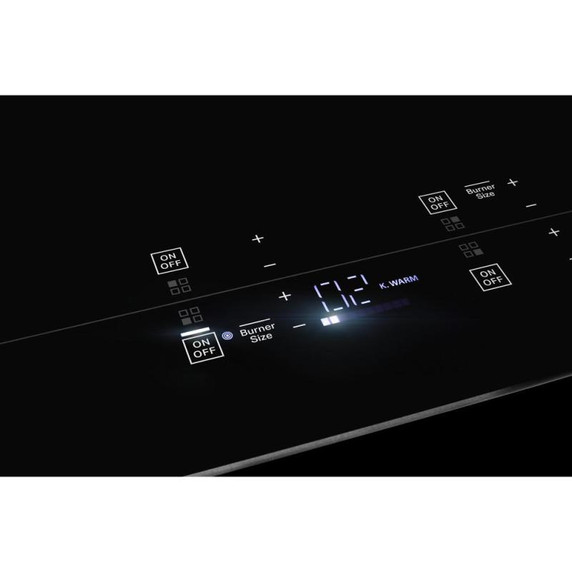

Emotive ControlsStriking, intuitive and easy to clean. Inviting controls wait expectantly for the lightest touch to unleash performance.
Install Over Single Wall OvenVersatility and functionality converge with the ability to install in a countertop above our single wall oven.

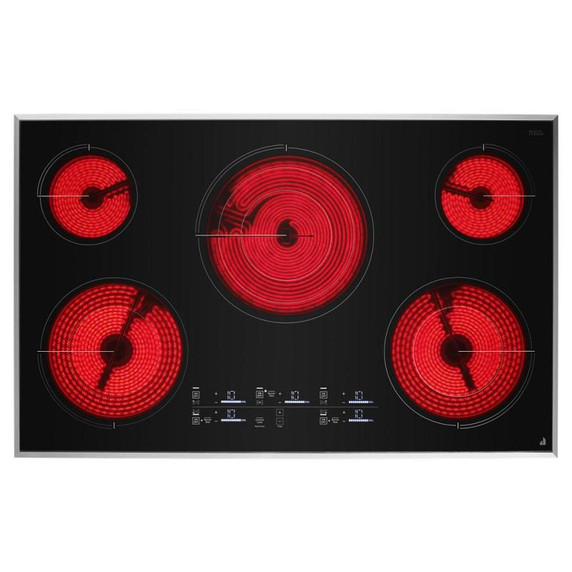

Radiant ElementsWaiting expectantly beneath the stillness of shadow-black glass, electric elements are coiled to deliver heat upon command.

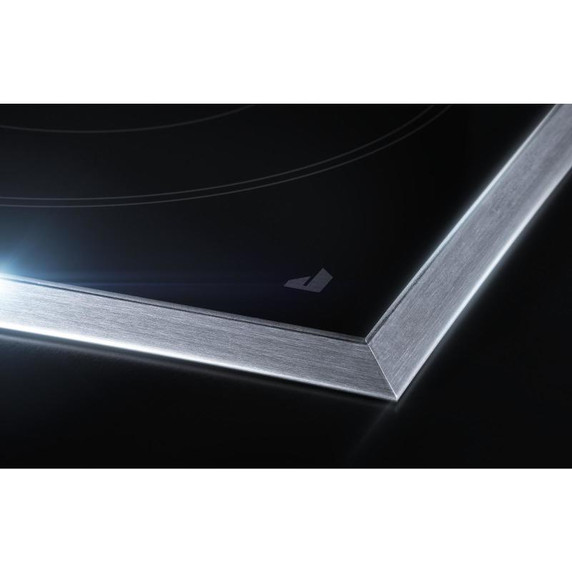

Lustre Brushed Metal DesignBlur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.
12" (30.5cm)/9" (22.9cm)/6" (15.2cm) Triple-Choice™ ElementReaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.

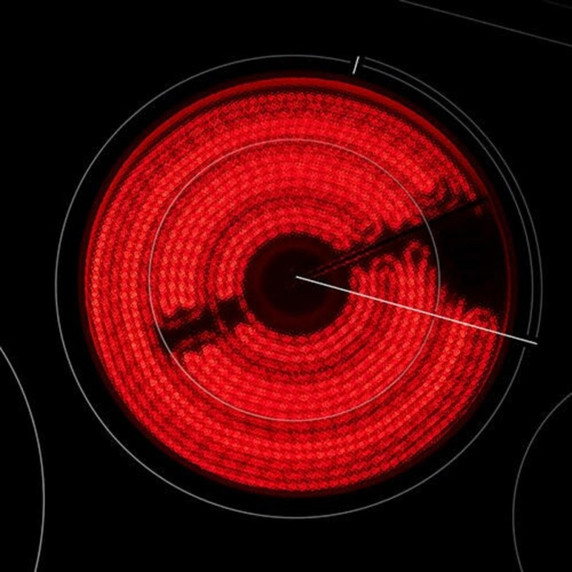

10”/6” Dual-Choice™ ElementThis two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
6” 1,200-Watt Single ElementA fast-heating and perfectly sized element for your small sauce pans and larger sauciers.

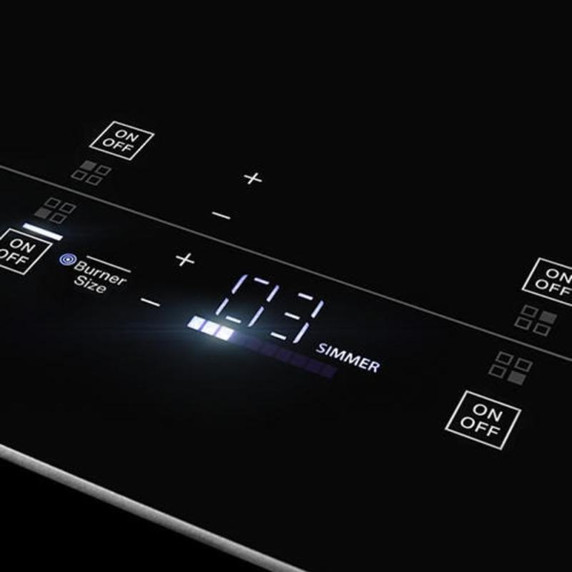

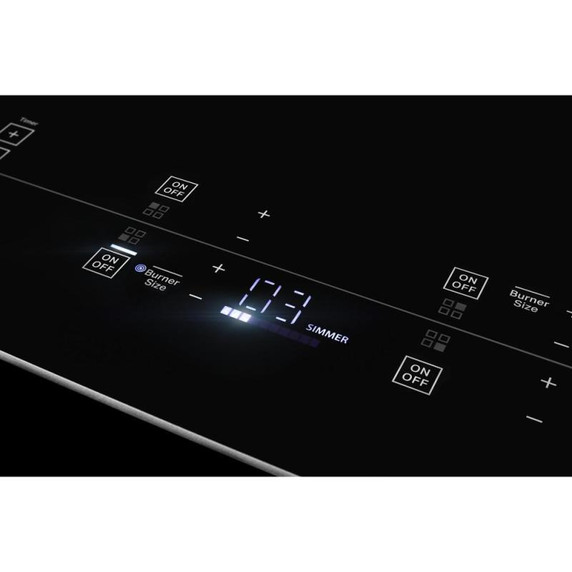

Simmer Function on All ElementsProvides the optimal temperature for gently cooking delicate sauces and foods.

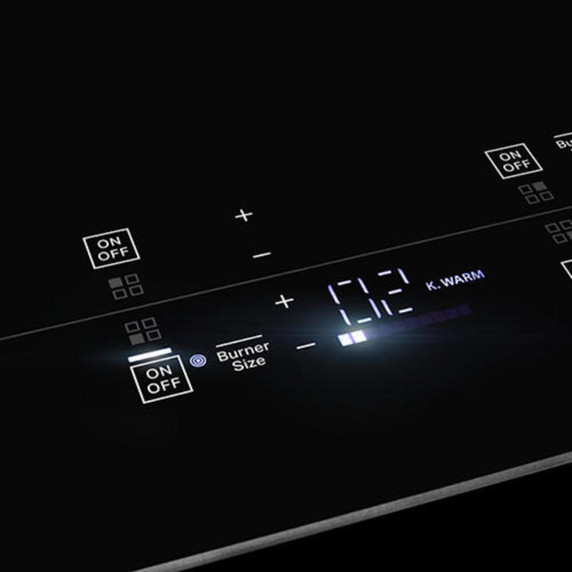

Keep Warm™ Function on All ElementsReward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
Hot Surface IndicatorsLight(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
Kitchen TimerThe kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
Power On Indicator LightSee at a glance that power is on for an electric induction element.
Control LockControl Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
Cooktop Power Off FunctionConveniently turn off all radiant elements at once.
ADA CompliantDesigned to meet ADA standards when installed according to the ADA guidelines.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

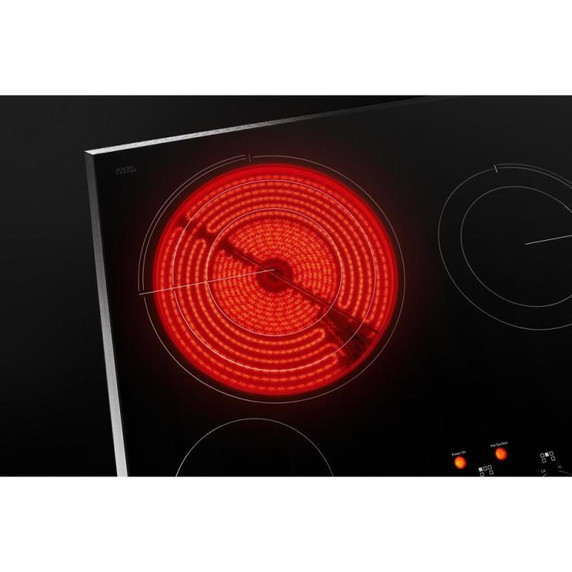

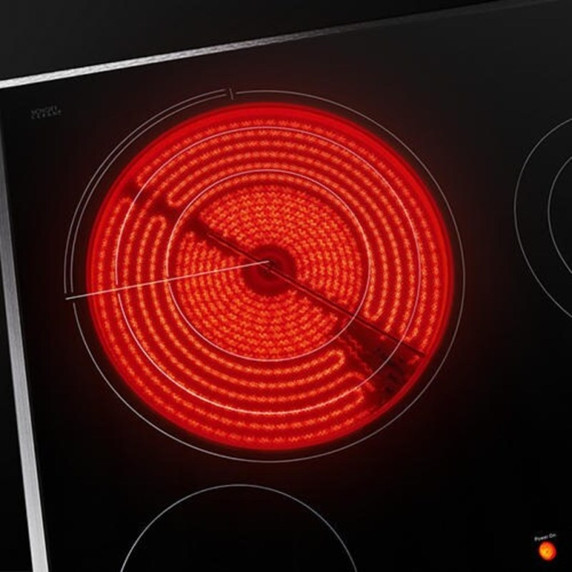

Most Powerful Radiant Element In The IndustryThe 12"/9"/6" Triple-Choice™ element is the most powerful radiant element available on 36- and 30-inch electric radiant cooktops. It reaches up to 4,500 watts when all three tiers are activated.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW4Y, EW08IW1Y, EW08IW2Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
Controls
Control TypeElectronic
Control LocationFront
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Right Front Element Burner Power3000W/1900W
Right Front Element Burner Size10in./6in.
Left Front Element Burner Power3000W/1900W
Left Front Element Burner Size10in./6in.
Center Rear Element Burner Size12in./9in./6in.
Center Rear Element Burner TypeTriple
Center Rear Element Burner Power4500W/3000W/1500W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Design Type
Design ExpressionLustre Stainless
Depth21.75"
Height5.25"
Maximum Height5.25"
Net Weight44.55 lbs.
Width36.31"

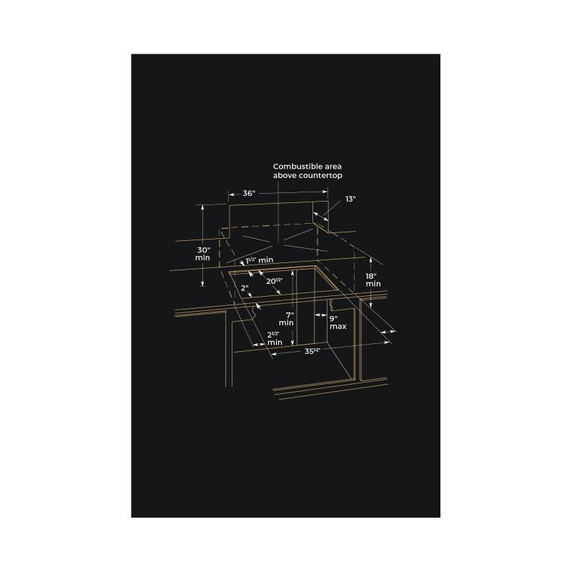

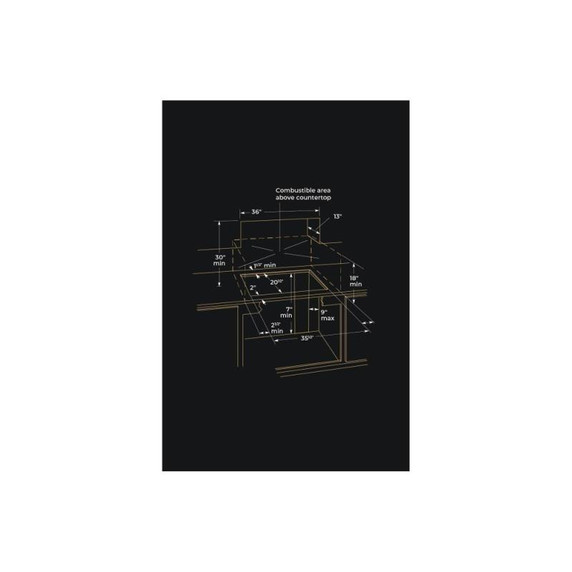

Cutout Depth20.38"
Cutout Width34.56"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
