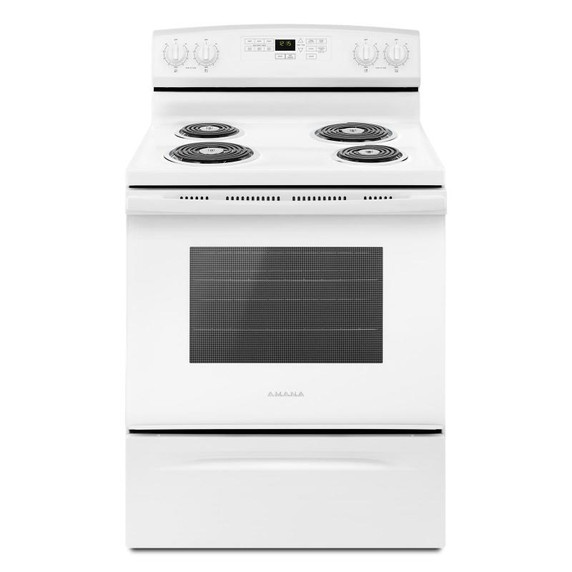

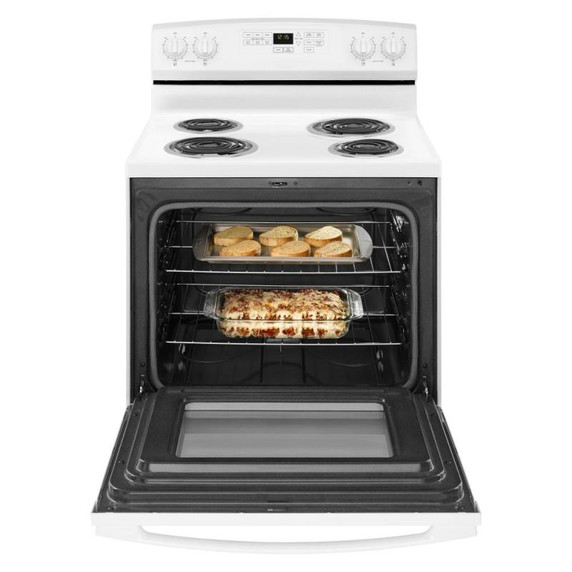

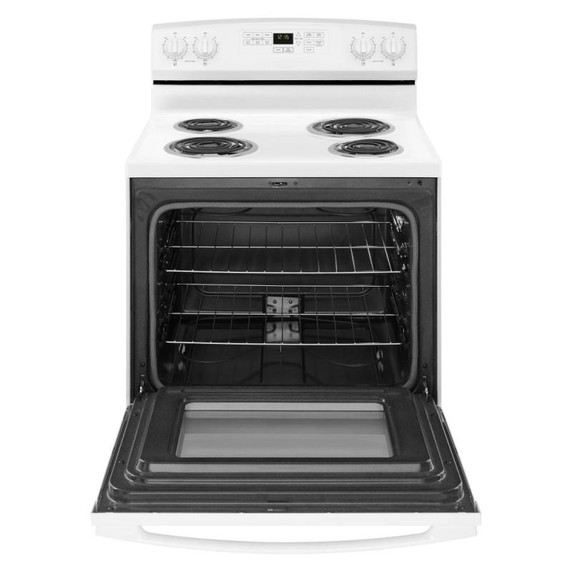

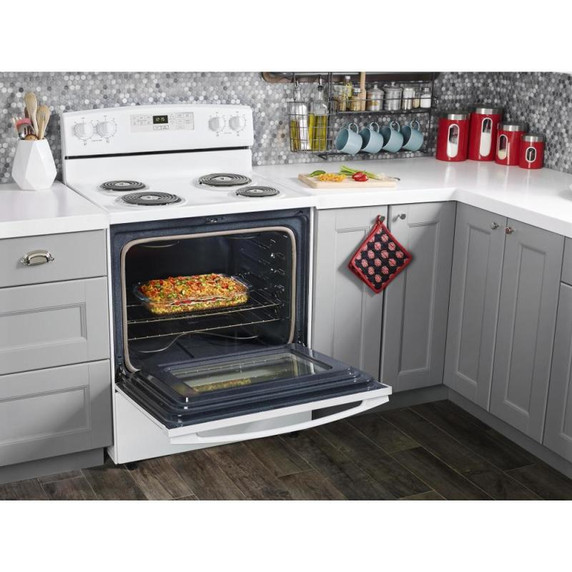

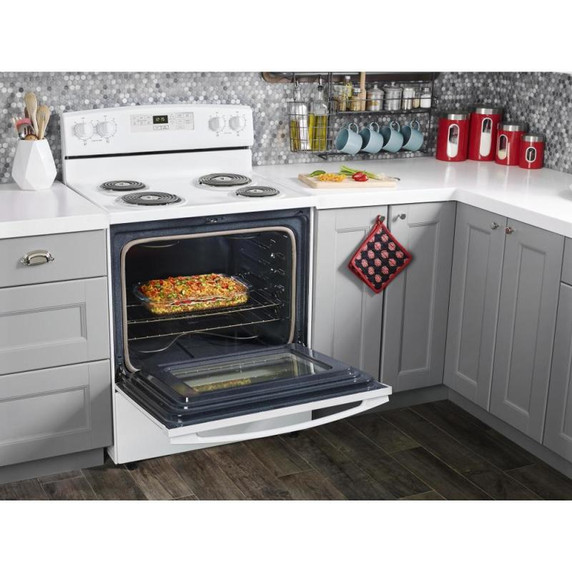

Amana® 30-inch Electric Range with Self-Clean Option YACR4503SFW

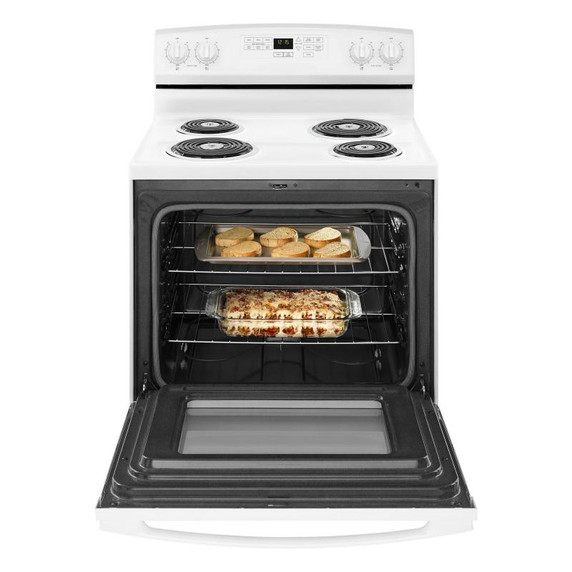

Large Oven CapacityLarge Oven Capacity gives you the space you need to make dinner and dessert at the same time.

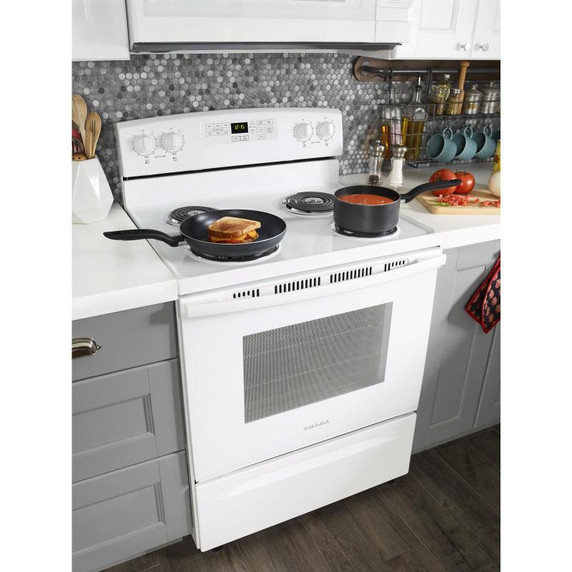

Versatile CooktopOur multiple coil options provide up to 2,100 watts to help you cook more of your favorites at the same time.
Bake Assist TempsThese preset temperature settings make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

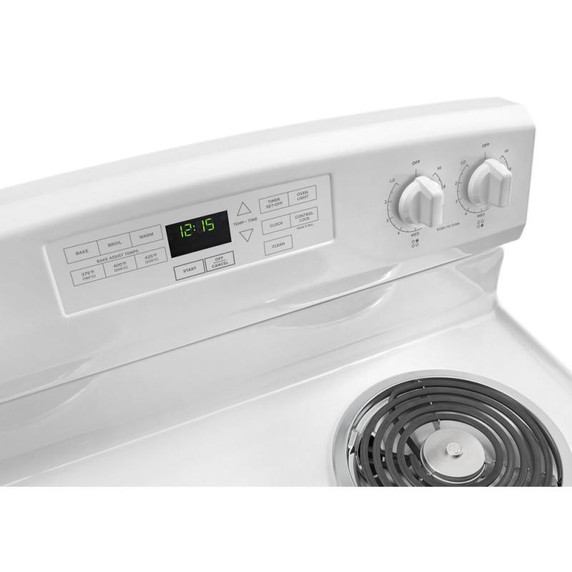

Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read electronic controls.
Temp Assure™ Cooking SystemDistributes heat throughout the entire oven to help comfort food favorites like chicken parmesan or mom's beef pot roast taste just how you like them.
Extra-Large Oven WindowSee and savor. A bigger view lets you check on food without having to open the oven door.
Self Clean OptionThere's no need to scrape and scrub with the Self Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Storage DrawerThis Storage Drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Custom BroilUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Warm HoldCan't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken Parmesan are still ready when you are.
Oven LockoutThis safety feature locks your oven and its controls to help protect against accidental use.
Indicator LightsCheck your oven's status and settings at a glance.
Sabbath ModeIf you keep a kosher home, this setting helps override the features of modern ovens such as automatic shutoff and electrical lights.
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW03IW1Y
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year510
Electrical
Power Cord IncludedYes
Amps40
Volts120/240
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
LP ConvertibleNo
Natural Gas ConvertibleNo
SelectionTimer; Clock; Control Lock; Warm Hold; Audible Signal; Sabbath Mode
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Cooktop Details
Cooktop Control TypeKnobs
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Right Front Element Burner Size6in.
Right Rear Element Burner Size8in.
Cooktop Surface ColorStainless Steel
Cooktop Element StyleCoil
Left Rear Element Burner Power1300W
Left Front Element Burner Power2150W
Left Front Element Burner TypeStandard Coil
Left Rear Element Burner TypeStandard Coil
Right Front Element Burner Power1300W
Right Front Element Burner TypeStandard Coil
Right Rear Element Burner Power2150W
Right Rear Element Burner TypeStandard Coil
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Convection Functions
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Convection Element TypeNone
Oven Rack TypeStandard
Exterior
Door RemovableYes
Handle TypeReach Through Handle
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorWhite
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Appearance
Oven DoorGlass Window
Carton Depth29"
Carton Height48.75"
Carton Width32"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight187 Kg.
Height46.88"
Maximum Height47.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.80
Minimum Height46.88"
