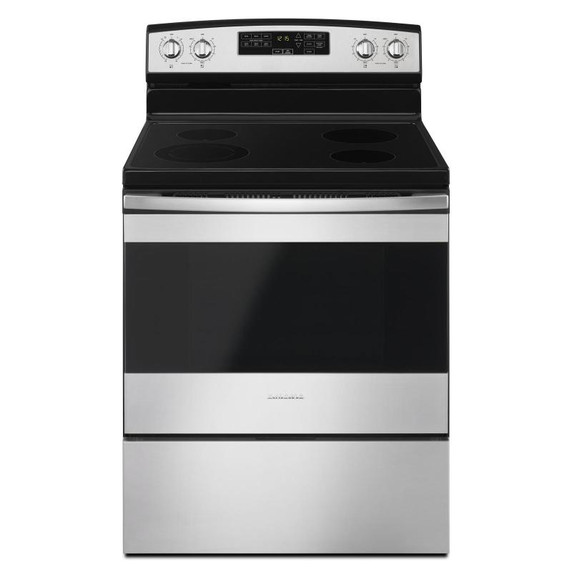

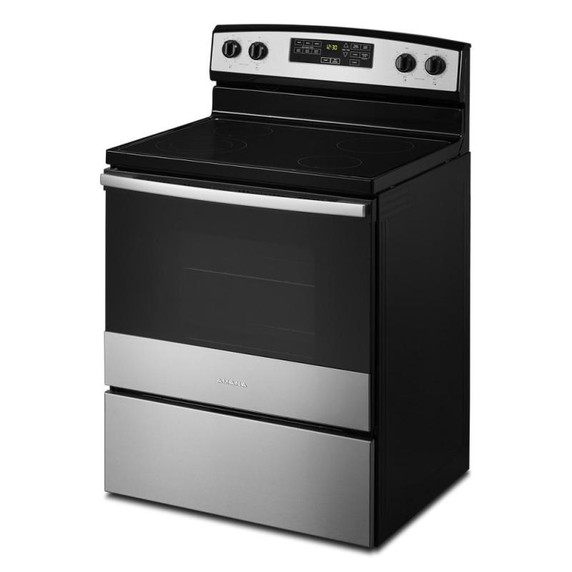

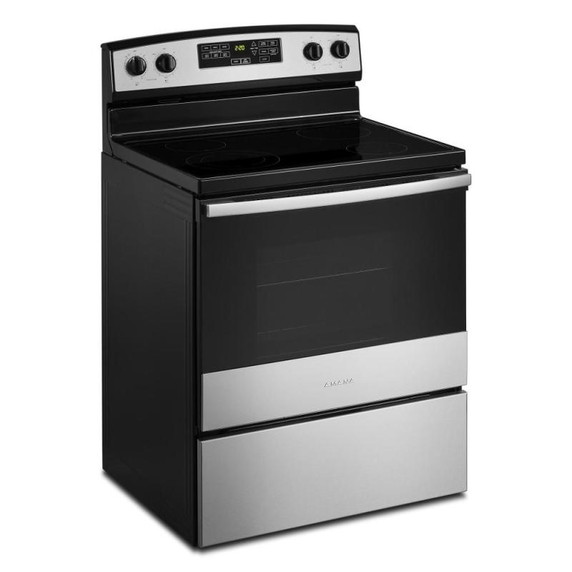

Amana® 30-inch Amana® Electric Range with Extra-Large Oven Window YAER6603SMS
Large Oven Capacity (4.8 Cu. Ft.)Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

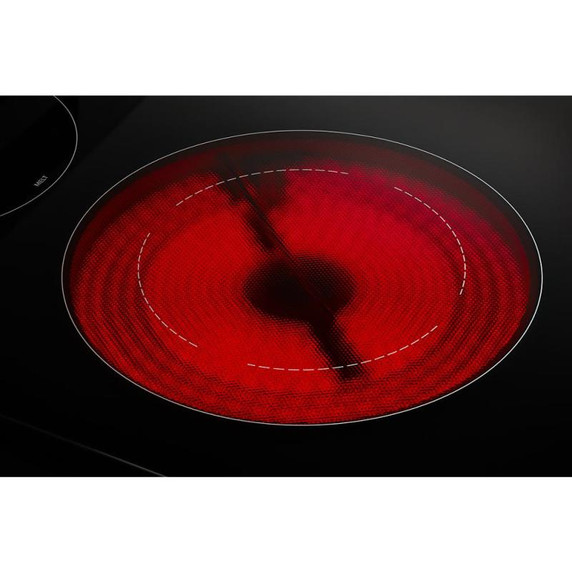

Versatile CooktopOur Versatile Cooktop with multiple element options provides up to 3,000 watts on the largest burner to help you cook more of your favorites at the same time.
Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

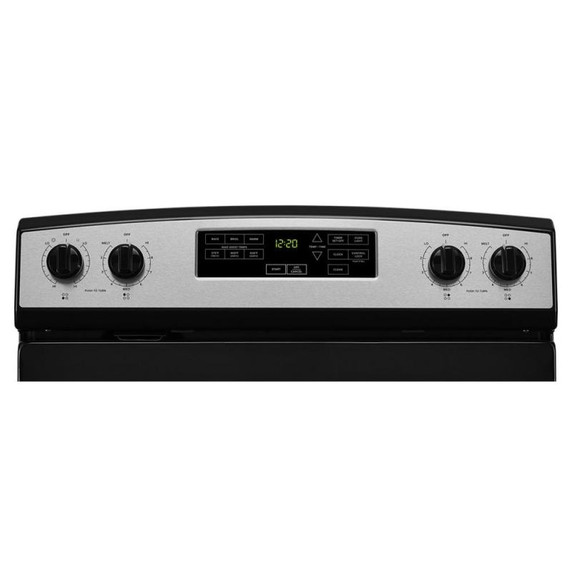

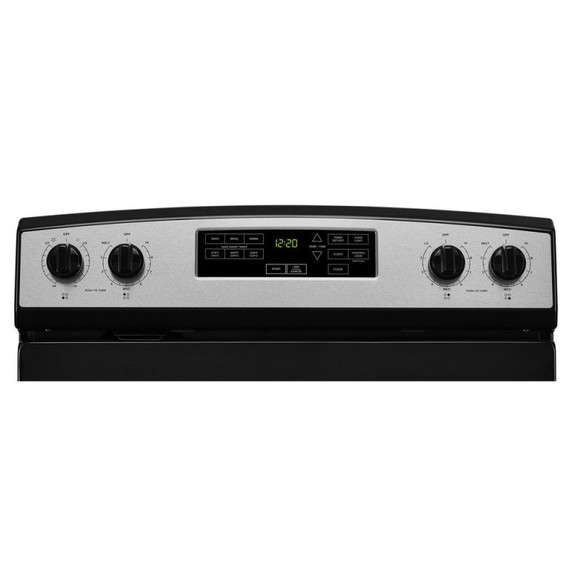

Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a wide view to let you check on food without having to open the oven door.
Storage DrawerThis Storage Drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm HoldUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Custom BroilUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Self-Clean OptionThere's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Contemporary DesignWith clean lines and modern finishes, our line of free-standing ranges lets you easily choose the features and design details that best fit your budget and lifestyle
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW04IW1Y
Optional Accessories4396096RB
Certifications
ULYes
Energy Rating Kwh Year532
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Handle TypeReach Through Handle
Drawer TypeStorage Drawer

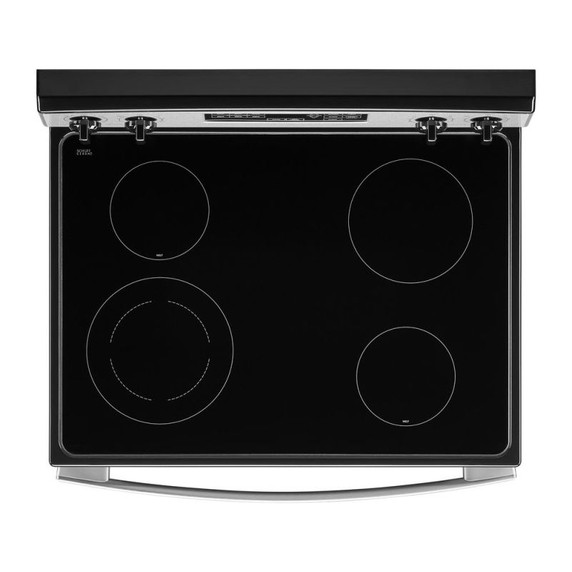

Cooktop Details
Left Front Element Burner TypeDual

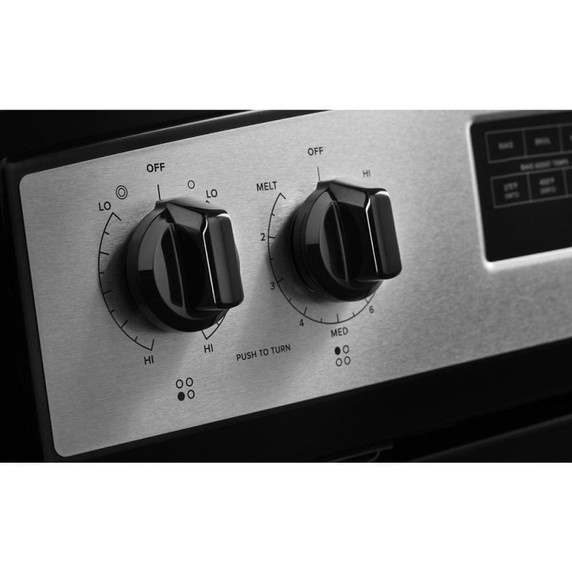

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Left Front Element Burner Power3000W/1400W
Right Front Element Burner Power1200W
Right Rear Element Burner Power1800W
Electrical
Power Cord IncludedYes
Amps40
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
GriddleNo
SelectionAudible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Keep Warm/Warm Hold; Sabbath Mode; Timer
Details
Automatic Shut OffNo
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Convection Functions
Interior ColorGrey

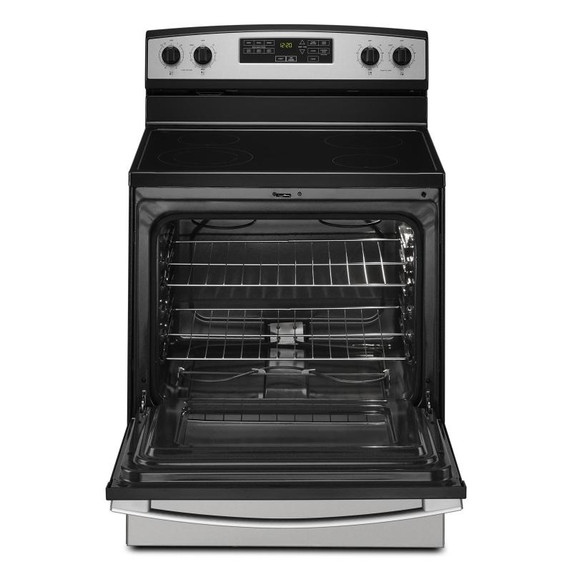

Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Convection Element TypeNone
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Appearance
Oven DoorGlass
Compatibility
Connectivity
Works With
Carton Depth29"
Carton Height48.75"
Carton Width32"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight152 Kg.
Height46.88"
Maximum Height47.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.80
Minimum Height46.88"
