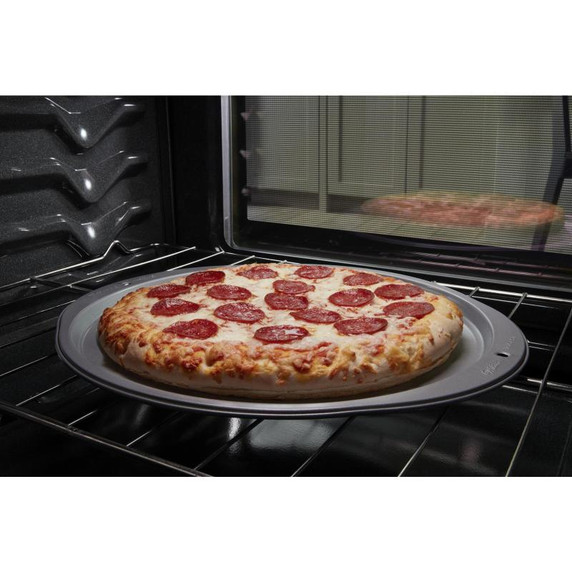

Frozen Bake™ technologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

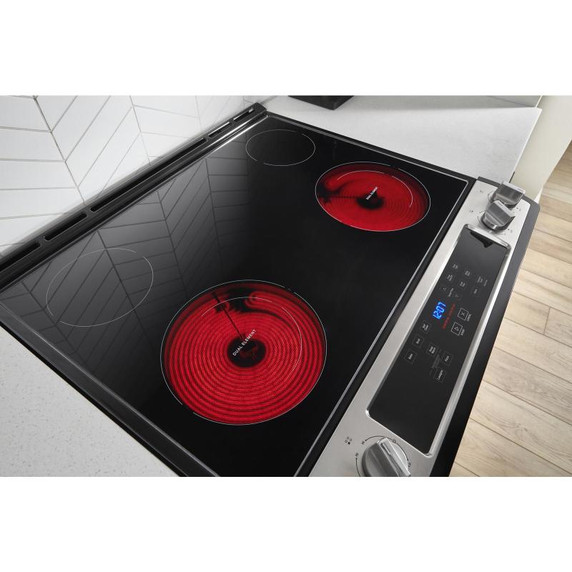

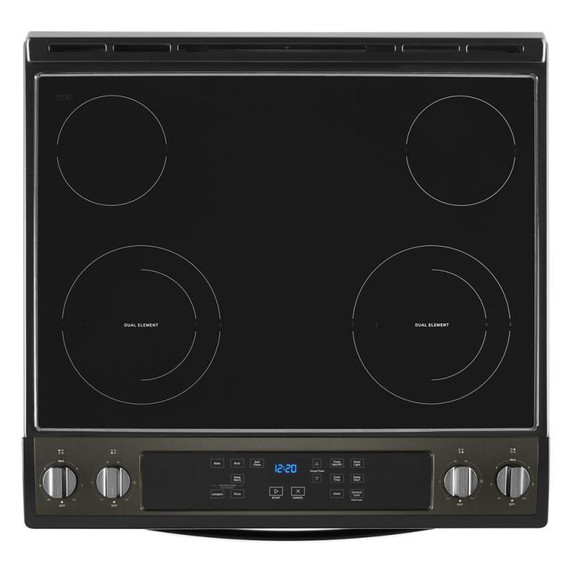

Two FlexHeat™ Dual Radiant ElementsGet two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.

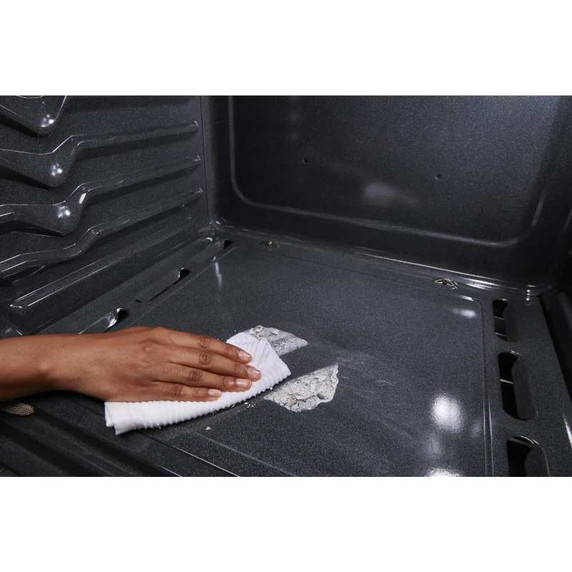

Adjustable Self-Clean CycleClean without chemicals by running this high-temperature setting. The Adjustable Self-Clean Cycle can be set to high or low based on the soil level of the oven.
4.8 Cu. Ft. CapacityEasily cook large meals with 4.8 Cu. Ft. Capacity
Fingerprint resistantAvailable in sunset bronze and stainless steel finishes, easy-to-clean steel resists fingerprints and smudges.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven.
Broil SettingWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Cooktop Indicator LightsNotice when the cooktop’s still on or hot with Cooktop Indicator Lights, so you can finish every meal with added peace of mind.
Sabbath ModeUse your smartphone or tablet to remotely set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

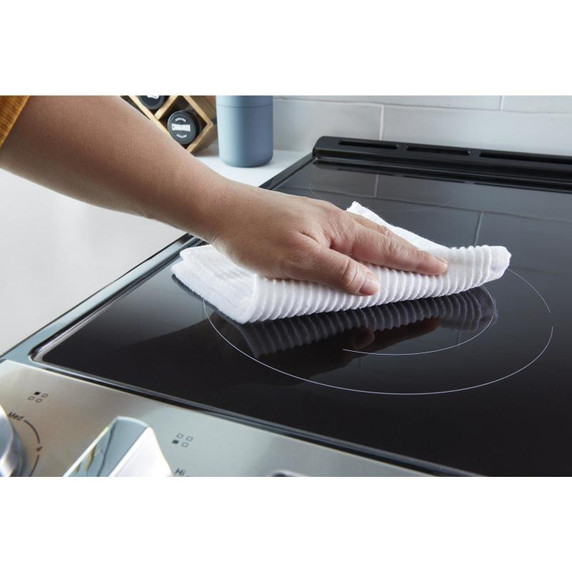

Ceramic Glass CooktopWiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.
Country Of OriginUSA
Extended Service Plan ParentEW06IW1Y
Product To Product PairsUVL5430JSS
Dishwasher SafeNo
Optional AccessoriesW10675027, W10731885, W10731886, W10675026, W10115773, W10655449, W10675028, W10655450, W10731887, W10655448
Hz60
Power Cord IncludedYes
Amps40
Volts120/240
ULYes
ADA CompliantYes
Energy Rating Kwh Year498
Handle MaterialMetal
Door RemovableYes
Handle ColorBlack Stainless
Handle TypeReach Through Handle
Drawer TypeStorage Drawer
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual

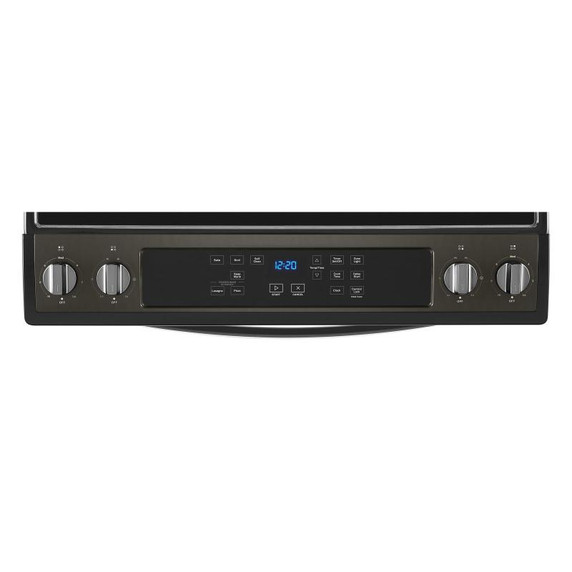

Cooktop Control LocationFront

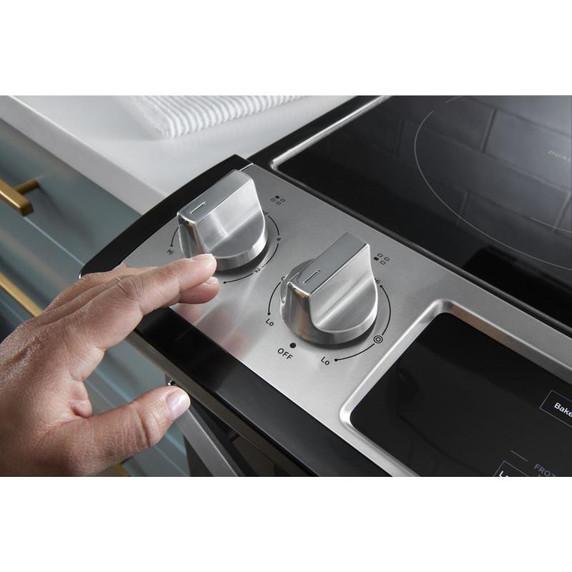

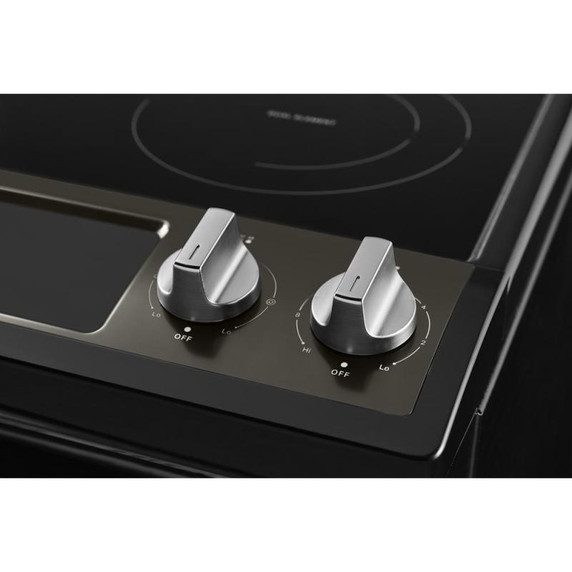

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Heating Element On Indicator LightYes

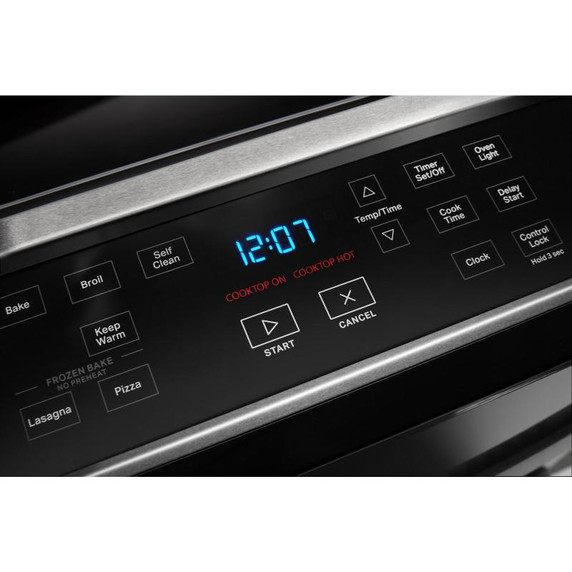

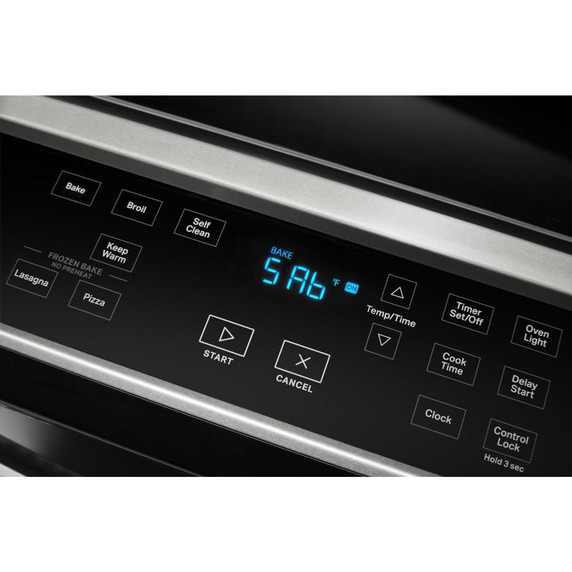

SelectionAudible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Sabbath Mode; Timer
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Broiler LocationTop of Oven
Oven Cleaning TypeSelf-Clean
Oven Control LocationFront Control
Oven Light Switch LocationOven Control

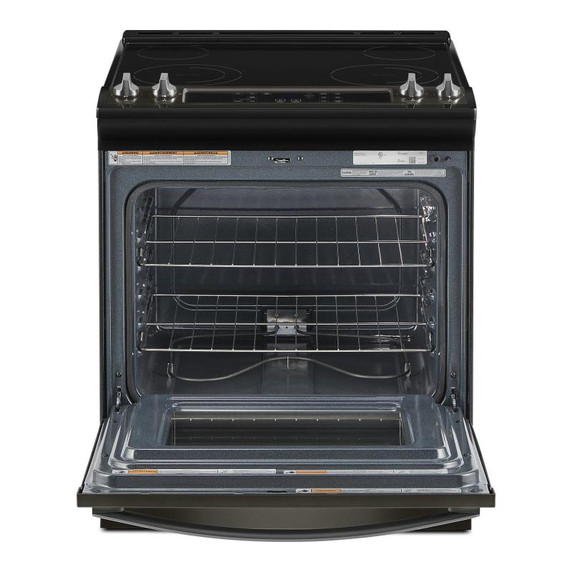

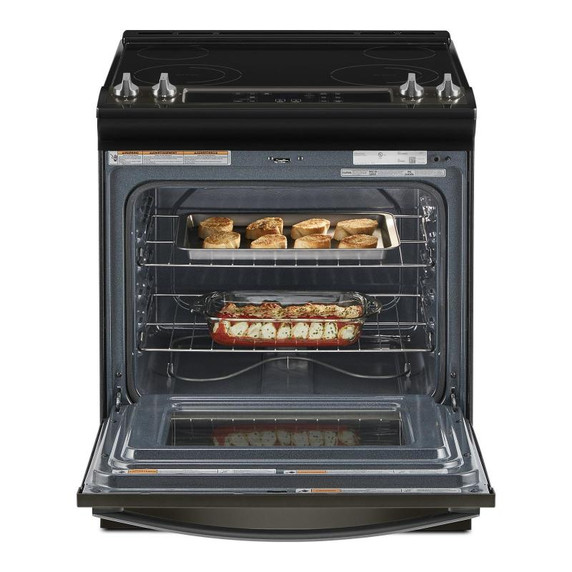

Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Interior ColorDark Grey
Number Of Oven Lights1
Oven Control TypeTap Touch
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Fuel TypeElectric
Size In30
Range TypeSlide-in
Knob TypePlastic
Electronic Display TypeLED
Oven DoorGlass
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles28.13"
Depth Closed Including Handles28.94"
Depth With Door Open 90 Degree47.38"

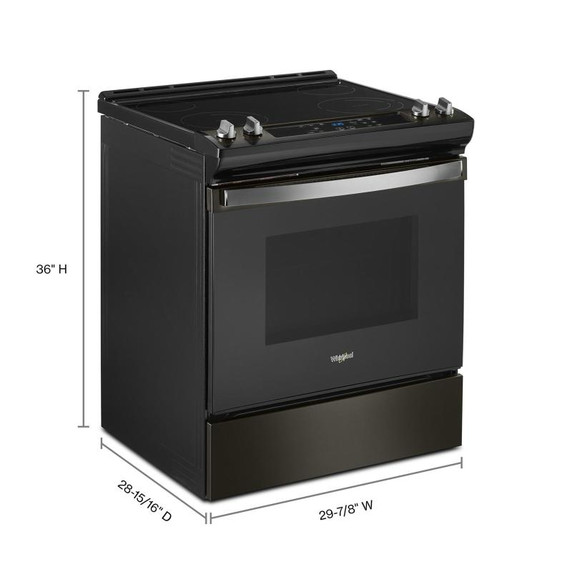

Depth28.94"
Gross Weight185 Kg.
Maximum Height37.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)4.80
Minimum Height36.0"
Height36.0"
